4.2KW Inverter Generator
June 7, 20223.8KW Inverter Generator
- Inverter generator has special structure and excellent technology, long running time.
- Clean and stable electricity output, the 3800 watt inverter generator is ultra silent, Rugged, durable, fashionable and portable.
- 3800 watt inverter generator uses overhead valve (OHV) design, lower operation temperature, powerful drive, and reliability and durability,and more fuel-effiecent.
- 3.8kva inverter generator adopt the best cast iron casing, it does not only effectively improve lubrication but also makes the engine more wear-resistant and prolongs engine life.
- Inverter generator automatic alarm and stop at low oil level, which prevents the engine to work at low oil level and gives more protection to the engine.
Category: Open Frame Inverter Generator

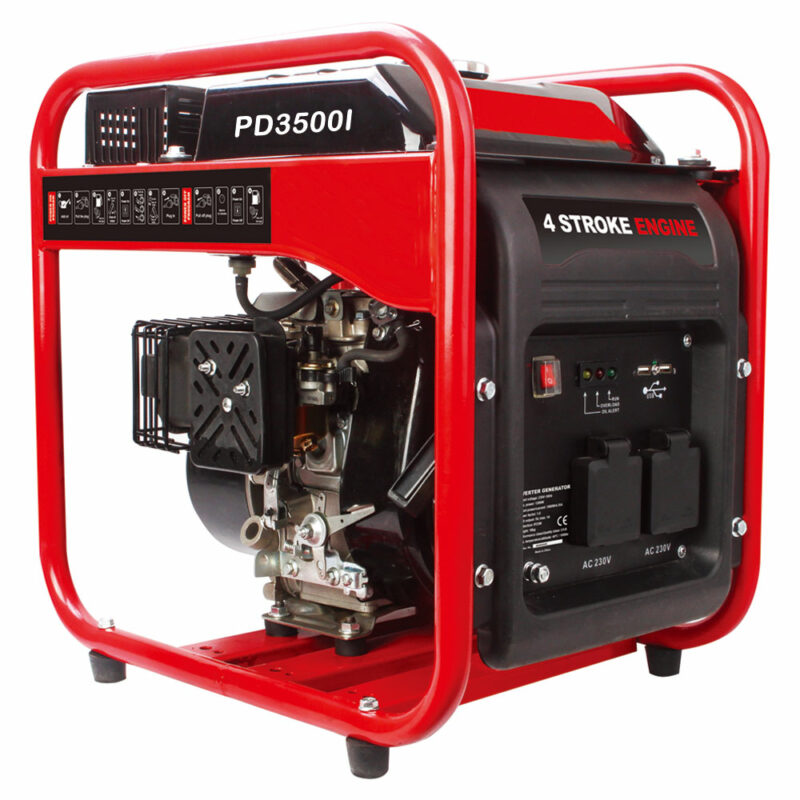

Model name | PD3500I |
Voltage: | 230V(240V) ~ 50HZ(60HZ) 12V d.c. |
Peak power (KW): | 3.8 |
Rated power(KW): | 3.5 |
Bore x Stroke(mm): | 72*54 |
Wiring type: | Copper |
Engine type | Single-cylinder forced air-cooled 4-stroke OHV |
Engine Model: | PD172FB |
Max output(HP): | 6.5 HP / 3600rpm |
Max.torque/rpm: | 13/2500 |
Fuel capacity: | 5 L |
Oil capacity: | 0.6 L |
Starting system: | Hand recoil start |
Displacement (cc): | 230CC |
Phase | Phase:1 |
Sound power level: | 96dB |
12V DC: | Yes |
Voltmeter | With Voltmeter(3in1) |
Carton size | 520x445x525 |
N.W./G.W. | 26/28 |
